Deploy for external TLS VIP access¶
This guide goes over an example deployment of PostgreSQL, PgBouncer and HAcluster that require external TLS/SSL access via Virtual IP (VIP).
It combines the following guides, where you can find more detailed information:
Requirements¶
Although Canonical does not prescribe how you should set up your environment, we can provide recommendations. Consider contacting us for support with your use-case.
The basic requirements to follow along with this example setup are the following:
A fully deployed and running Juju machine environment
See the PostgreSQL Tutorial for a quick setup with Multipass
See the official Juju deployment guide for more details
A spare virtual IP address for hacluster
See the PgBouncer guide: How to use a VIP to connect to PgBouncer
DNS record pointing to VIP above (
my-tls-example-db.localis used as an example here)
Design¶
Caution
This setup is applicable for VM/machine charms only. Do not use it as a reference for K8s deployments.

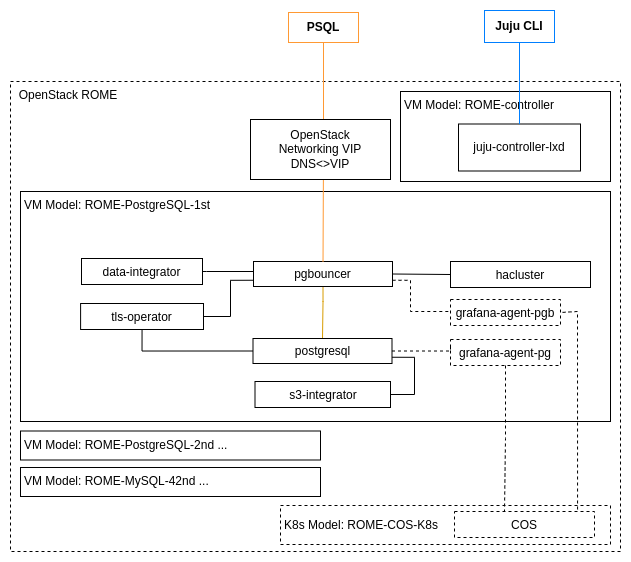

This setup deploys the following components:
The
postgresqlcharm (3 units, as a single cluster).The
self-signed-certificatescharm as the TLS provider.Note that this is not suitable for production deployments. See the guide: Security with X.509 certificates.
The
data-integratorcharm as a principal charm for the subordinated charms below (3 units for high availability):The latest
pgbouncercharm as a load-balancer and connection pooler (3 units).The
haclustercharm for VIP handling (3 units are the minimum for HA).(optional) The COS
grafana-agentcharm for Monitoring purposes.
Deploy components¶
Create a Juju model if you haven’t already:
juju add-model my-external-tls-db
Deploy postgresql and self-signed-certificates:
juju deploy postgresql --channel 14/stable -n 3
juju deploy self-signed-certificates
juju integrate postgresql self-signed-certificates
Deploy pgbouncer from the 1/stable channel and configure it with your VIP:
juju deploy pgbouncer --channel 1/stable --config vip=10.20.30.40
juju integrate pgbouncer postgresql
juju integrate pgbouncer self-signed-certificates
Deploy data-integrator with 3 units and configure the database name of your choice. In this example, we use mytestdb:
juju deploy data-integrator -n 3 --config database-name=mytestdb
juju integrate data-integrator pgbouncer
Deploy hacluster:
juju deploy hacluster
juju integrate hacluster pgbouncer
juju integrate hacluster:juju-info data-integrator
Example juju status output:
Model Controller Cloud/Region Version SLA Timestamp
my-external-tls-db lxd localhost/localhost 3.5.5 unsupported 12:53:35+01:00
App Version Status Scale Charm Channel Rev Exposed Message
data-integrator active 3 data-integrator latest/stable 78 no
hacluster 2.1.2 active 3 hacluster 2.4/stable 131 no Unit is ready and clustered
pgbouncer 1.21.0 active 3 pgbouncer 1/stable 396 no VIP: 10.78.217.100
postgresql 14.12 active 3 postgresql 14/stable 468 no
self-signed-certificates active 1 self-signed-certificates latest/stable 155 no
Unit Workload Agent Machine Public address Ports Message
data-integrator/0 active idle 4 10.78.217.30
hacluster/3 active idle 10.78.217.30 Unit is ready and clustered
pgbouncer/0* active idle 10.78.217.30 6432/tcp VIP: 10.78.217.100
data-integrator/1 active idle 5 10.78.217.132
hacluster/2 active idle 10.78.217.132 Unit is ready and clustered
pgbouncer/1 active idle 10.78.217.132 6432/tcp
data-integrator/2* active idle 6 10.78.217.93
hacluster/1* active idle 10.78.217.93 Unit is ready and clustered
pgbouncer/2 active idle 10.78.217.93 6432/tcp
postgresql/0 active idle 0 10.78.217.254 5432/tcp
postgresql/1 active idle 1 10.78.217.245 5432/tcp
postgresql/2* active idle 2 10.78.217.192 5432/tcp Primary
self-signed-certificates/0* active idle 3 10.78.217.79
Machine State Address Inst id Base AZ Message
0 started 10.78.217.254 juju-318984-0 [email protected] Running
1 started 10.78.217.245 juju-318984-1 [email protected] Running
2 started 10.78.217.192 juju-318984-2 [email protected] Running
3 started 10.78.217.79 juju-318984-3 [email protected] Running
4 started 10.78.217.30 juju-318984-4 [email protected] Running
5 started 10.78.217.132 juju-318984-5 [email protected] Running
6 started 10.78.217.93 juju-318984-6 [email protected] Running
Check connectivity¶
To test the connection to PostgreSQL via TLS, first get the credentials via data-integrator:
juju run data-integrator/leader get-credentials
...
postgresql:
data: '{"database": "mytestdb", "external-node-connectivity": "true", "requested-secrets":
"[\"username\", \"password\", \"tls\", \"tls-ca\", \"uris\"]"}'
database: mytestdb
endpoints: 10.78.217.100:6432
password: V7kHqHyapIphkUS0cHoOtP3j
subordinated: "true"
uris: postgresql://relation_id_9:[email protected]:6432/mytestdb
username: relation_id_9
version: "14.12"
Now use the received credentials (uris) to connect PostgreSQL (via TLS/SSL):
> psql postgresql://relation_id_9:[email protected]:6432/mytestdb
psql (14.15 (Ubuntu 14.15-0ubuntu0.22.04.1), server 14.12 (Ubuntu 14.12-0ubuntu0.22.04.1))
SSL connection (protocol: TLSv1.3, cipher: TLS_AES_256_GCM_SHA384, bits: 256, compression: off)
Type "help" for help.
mytestdb=> select now();
now
-------------------------------
2025-01-14 11:51:04.646245+00
(1 row)
Ensure your DNS records points to the virtual IP and that it is routable/reachable from outside of your network to connect using DNS:
psql postgresql://relation_id_9:[email protected]:6432/mytestdb
(Optional) Add monitoring¶
Consider adding the Canonical Observability Stack (COS) to your setup for monitoring, alert rules, logs, and tracing.
High availability¶
Caution
In production environments, deploy different units into separate availability zones (AZ).
At this point, Juju is responsible for the health of the clusters/applications:
The PostgreSQL charm will restart the workload if PostgreSQL is not healthy.
The Juju agent will restart the unit/vm/container if it is no longer reachable/healthy (in the same AZ).
The Juju controller will make sure Juju agent is up and running and charm is healthy.
The HACluster charm will make sure the VIP is always reachable and routes to a single PgBouncer.
PgBouncer will balance incoming connections and makes sure write traffic goes to the primary PostgreSQL unit.
The TLS operator (in this example, the
self-signed-certificatescharm) is responsible for providing all components with signed ready-to-use TLS artifacts.
Troubleshooting¶
Contact us if you have any issues with this setup or would like help with a different use-case.
